B-7 Ceramic

$2,595.00 USD

Premium high-precision tonearm.

TYPE: 9″ Ball Bearing Tonearm
BALL BEARINGS: ceramic ball bearings custom-made by GRW
ARM WAND: Titanium
DESIGN: 12mm rectified tube 0.6mm with 6 sections different thickness
VTA: Adjustable on collar
INTERNAL CABLES: AWG36 Hyper Litz shielded 99,9999% OFC

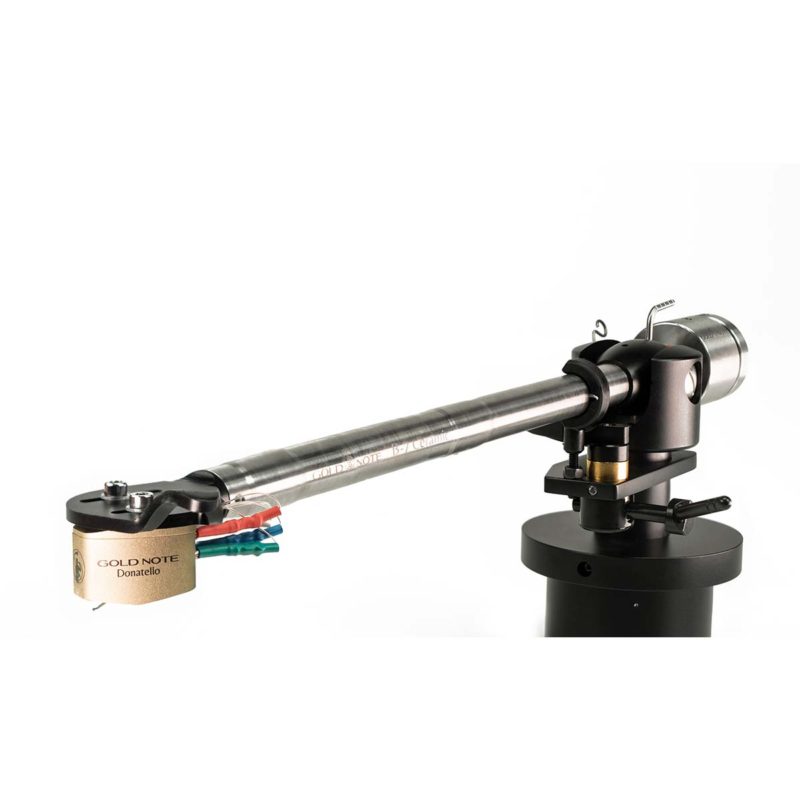

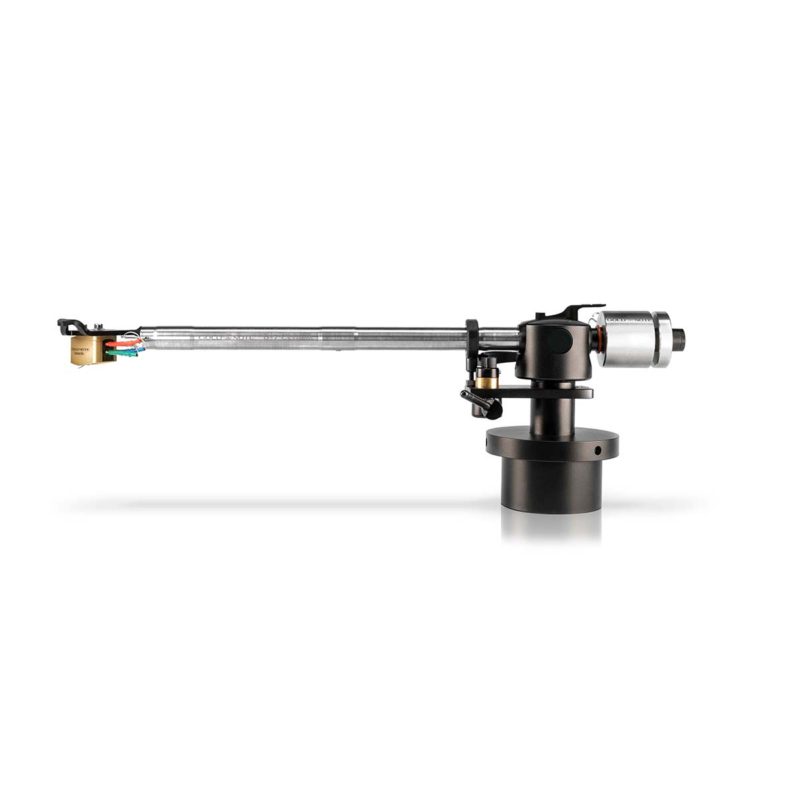

The Gold Note B-7 Ceramic Tonearm is a high-precision 9″ tonearm designed for audiophiles seeking exceptional sound quality and performance. Built with custom-made ceramic ball bearings from GRW, this tonearm minimizes friction and maximizes tracking accuracy. The arm wand is crafted from lightweight titanium, while the 12mm rectified tube features a unique design with six different thicknesses for optimal rigidity and resonance control.

Key features like adjustable VTA on the collar, hydraulic lift, and anti-skating with 5 positions allow for fine-tuned setup and perfect alignment, ensuring every groove is followed with utmost precision. The tonearm also includes adjustable azimuth on the head-shell for further customization, and comes with AWG36 Hyper Litz shielded internal cables for superior signal integrity.

Specifications:

  • Effective Length: 9.53 inches

  • Overhang: 0.75 inches

  • Offset: 24°

  • Dynamic Effective Mass: 0.35 oz

  • VTF (Vertical Tracking Force): 0.176N (18g)

  • Cables: 4.92 ft custom 4-pole DIN/RCA external cables

  • Weight: 6.88 oz (without counterweight)

  • Counterweight: Stainless steel, natural finish

  • Lift: Hydraulic

The Gold Note B-7 Ceramic Tonearm offers unmatched performance, with a sleek design featuring black anodized aluminum for the shell and pivot, and a titanium arm wand. Whether you’re an experienced audiophile or a newcomer to vinyl, this tonearm ensures your records are heard with impeccable accuracy.

MAIN FEATURES

TYPE 9″ Ball Bearing Tonearm
BALL BEARINGS Ceramic ball bearings, custom-made by GRW
OVERHANG 0.75"
OFFSET 24°
ARM WAND Titanium
DESIGN 12mm (0.47") rectified tube, 0.6mm wall with 6-section variable thickness
INSERTING PLINTH SHAFT 0.91"
DYNAMIC EFFECTIVE MASS 10g
VTF 0.176N (18g)
VTA Adjustable on collar
LIFT Hydraulic
ANTI-SKATING Wire mechanism, 5 positions
AZIMUTH Adjustable on the headshell

CABLES

INTERNAL CABLES AWG36 Hyper Litz shielded, 99.9999% OFC
EXTERNAL CABLES SUPPLIED 1.5m custom 4-pole DIN to RCA

DIMENSIONS AND WEIGHT

DIMENSIONS Effective length: 242mm (9.53")
WEIGHT 195g (6.88 oz) without counterweight

FINISHES

  • Shell & Pivot: Black anodized aluminum
  • Arm Wand: Titanium
  • Counterweight: Natural stainless steel
  • Hydraulic Lift Board: Black
