Mediterraneo with B7-Ceramic

Flagship turntable with triple plinth design made of black acrylic, stainless steel and Italian walnut hardwood. Dimensions: 470mm W x 201mm H x 360mm D.

FEATURES:
45mm platter made of POM
Electronic speed selection 33/45 with pitch control
12V high-torque synchronous motor

INCLUDES:
Custom dustcover
B-7 Ceramic tonearm
18V power supply

SALE: $8999

*Please call for available “open box” of this model.
1.888.279.6765



This product is currently out of stock and unavailable.

THE ITALIAN TURNTABLE

The Mediterraneo turntable shows with a superb aplomb all its Italian flair and distinction coming from its strong Tuscan origins, combining pure beauty to the greatest attention for technical perfection. This turntable comes from our Florentine roots and elevates itself far beyond the simple musical dimension: it’s an ode to musical passion and dedication to vinyl.

Every detail of the Mediterraneo enhances the turntable’s ultra-rigid structure resulting in a refined technical innovation achieved through elegant smooth lines. The 60mm thick curved plinth design is based on the Catenary curve, a highly efficient concept developed by our greatest inspiration, the Renaissance pillars, artists and scientists Michelangelo Buonarroti and Galileo Galilei.

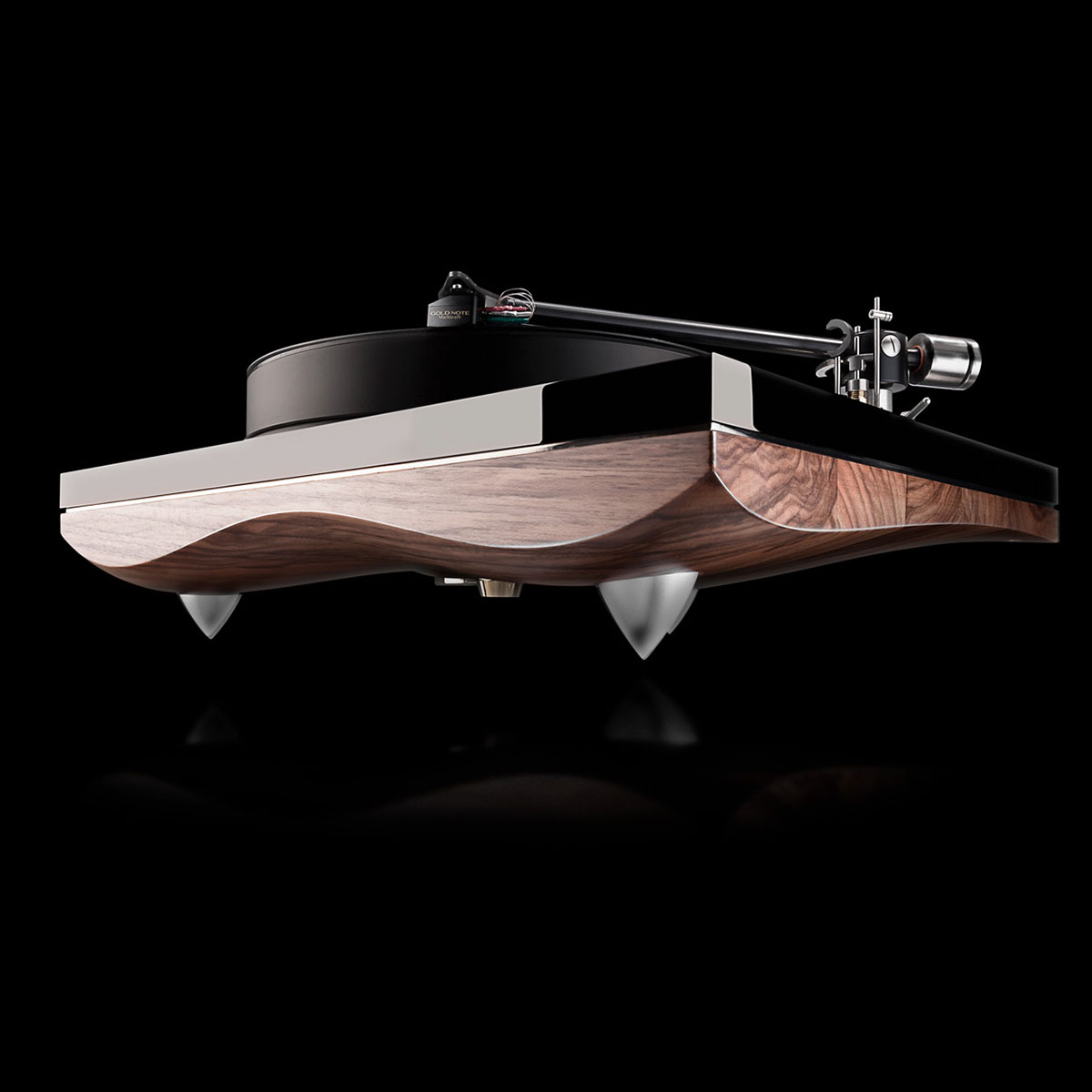

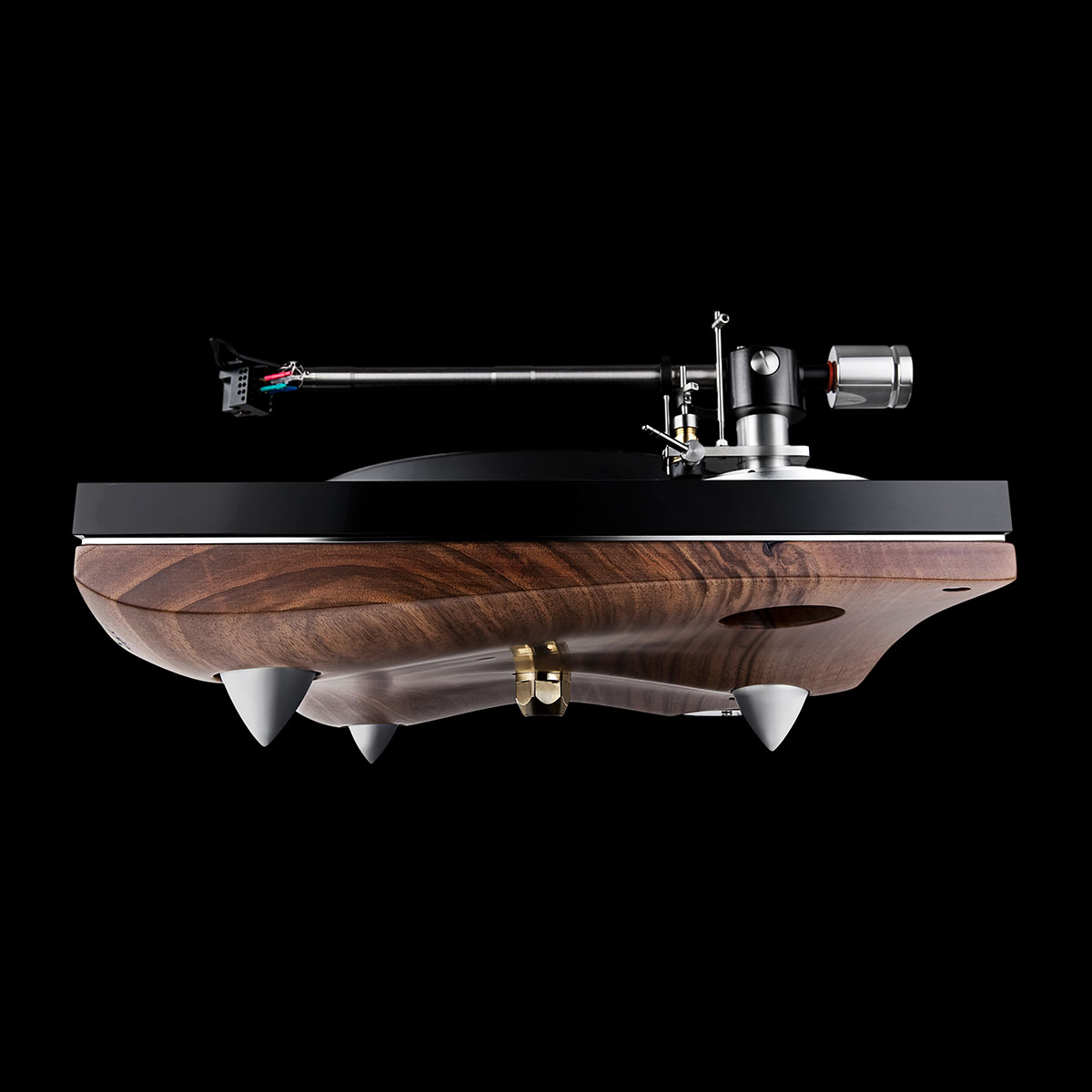

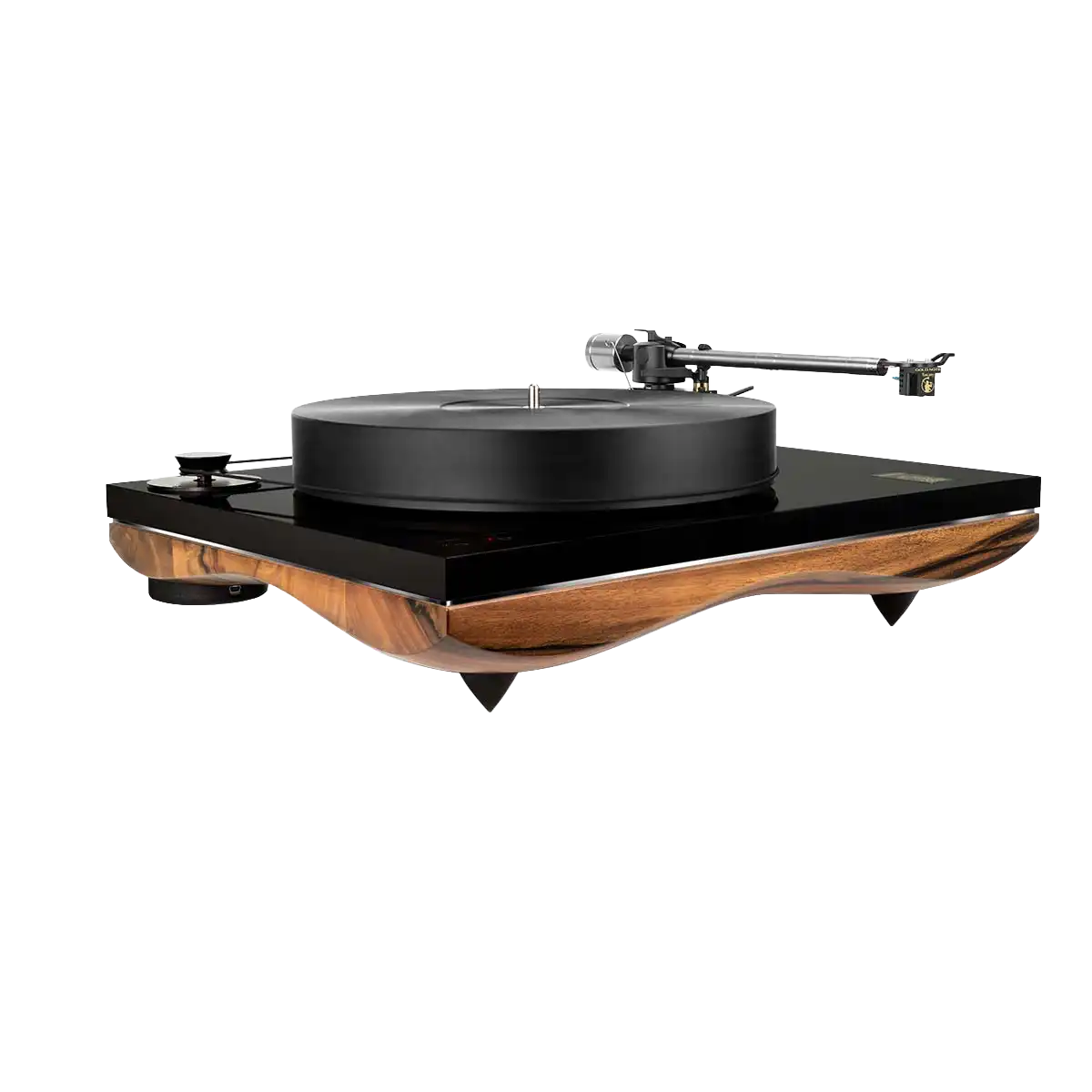

Made of aged Italian walnut hardwood, the chassis benefits from the quality of such a unique and noble material: exceptional elasticity, strength and high density. The triple plinth structure is reinforced by a compelling 20mm board in polished acrylic and a 3mm thick stainless steel board to improve its exceptional dampening quality and stability. The wooden base sits on three large elegantly shaped and adjustable spikes made of anodized aluminium.

The 45mm thick high-precision platter made of Ultra-Dampened POM is belt- driven and powered by our very best proprietary control system developed on a Quadral-Core micro-controller enhanced by an audio converter. The power control reshapes the AC wave to perfectly drive the 12V synchronous motor removing vibrations while improving its torque to deliver the greatest dynamic and the finest detail. The Power Supply Unit electronically controls the 33,3 rpm and 45rpm mode as well as the fine speed adjustment, storing all settings into memory.
The Mediterraneo features a 60mm long bearing/spindle design with the best coupling tolerance. The spindle is made of the hardest rectified carbon steel to achieve perfect working fluidity. The bearing system is made of polished bronze guaranteeing the smoothest platter rotation.

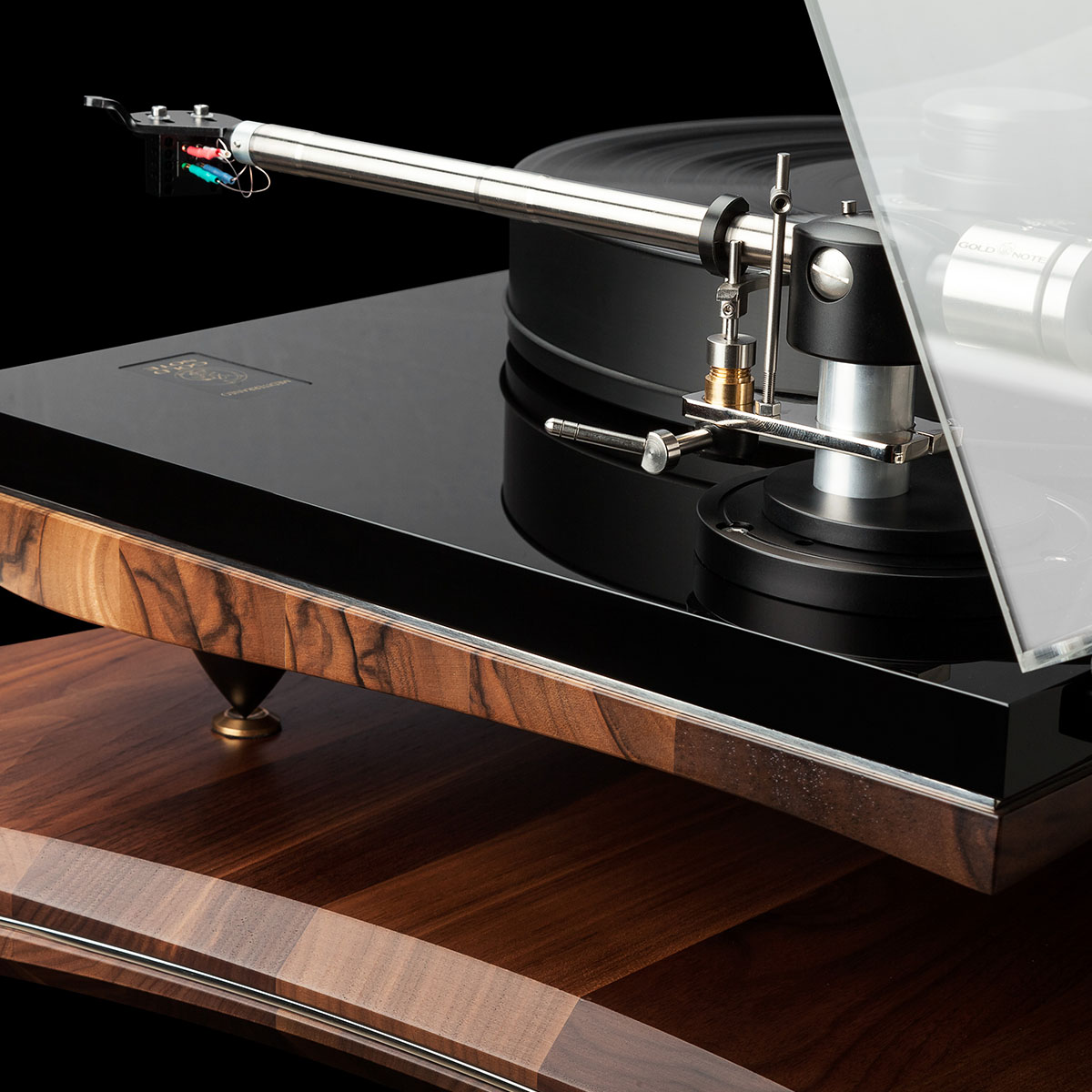

Designed in complete coherence with all the other elements, the precision B-5.1 tonearm equips the turntable as well as a custom made transparent dust-cover with hinges for easy removal. Upgrades are possible with the B-7 high-precision tonearm made of ceramic and titanium. Also included in the package is the high-quality external power supply PST-1, with a grounded IEC plug that allows using the favorite AC power cord in order to ideally tune the audio performance. The turntable can also be taken to its pinnacle with the optional super external inductive power supply PST-10.

Adding one of Gold Note’s high- performance MC or MM cartridges, the Mediterraneo will become the true High-End analog solution made in Italy, responding in a spectacular way to the highest expectations about sound, craftsmanship and mechanical fine tuning.

Technical Specifications

WOW & FLUTTER 0,1%
RUMBLE -80dB
SPEED 33⅓rpm and 45rpm ±0,1%
SPEED CHANGING electronic with fine pitch control
TRANSMISSION 70 shores rectified EPDM belt
MOTOR 12 Volt High Torque synchronous
PLATTER 45mm thick high-density POM
PLATTER SPINDLE Split-Spindleâ„¢ clamping design
PLATTER BEARING Tungsten 5mm ball bearing
TONEARM Gold Note B-5.1 (or opt. B-7 Ceramic)
DUST COVER transparent acrylic with hinges
POWER Power supply: PST-1 18V output 100-240V, 50/60Hz
Power consumption: max 27W
UPGRADE PST-10 external inductive power supply for turntables
B-7 Ceramic high precision tonearm
DIMENSIONS 470mm W, 210mm H, 360mm D
WEIGHT 44lbs net weight
57lbs boxed

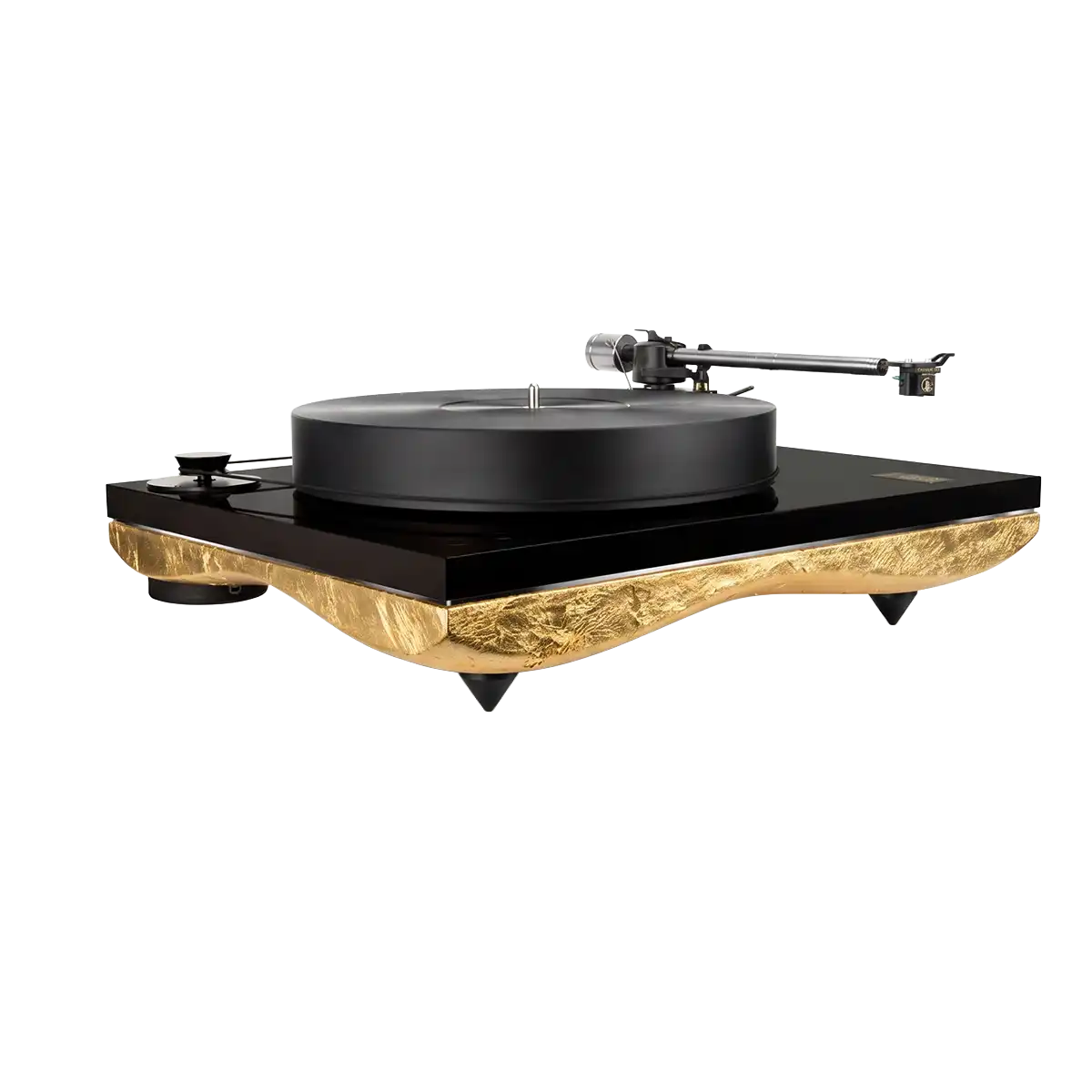

FINISHES Lower Plinth: Italian Walnut, Black Lacquered MDF and Real Gold Leaf
Upper Plinth: Black polished acrylic
Metal Parts: Black anodized aluminum (opt. Silver)
Platter: Black
