PST-10

Original price was: $1,199.00.Current price is: $959.00.

The PST-10 is a super inductive power supply designed for all gold note low voltage powered turntables.

PST-10 has been engineered with the best quality audio-grade components to enhance the performance of Gold Note Turntables and improve your audio system getting the very best music experience out of your LP’s.

PST-10 features a proprietary Dual Choke design powered by a double inductor driving the negative and positive high current stages and featuring an inductive filter on the analogue stage.

The power supply performs 4 transformers, 3 of which are strictly dedicated to the power supply while 1 transformer exclusively powers the inductive filter and the chokes.

PURE ENERGY
The Gold Note proprietary Dual Choke design perfectly filters the signal voltages in order to eliminate all the possible electrical pollution. The PST-10 uses its massive power supply to shield the turntables from electro-magnetic interferences thus insulating it effectively from the AC power system.

To enhance the performance to their best, the PST-10 is supplied with a silver core custom cable powering the turntable. The 1.5m long cable allows positioning the PST-10 conveniently on its dedicated shelf in the selected stereo system always preserving the highest audio quality.

The large, ultra-clean power enhances super low noise, greater dynamic, better resolution and finer details for a more realistic High-End audio performance and pure audio pleasure.

FINISHES

CASE

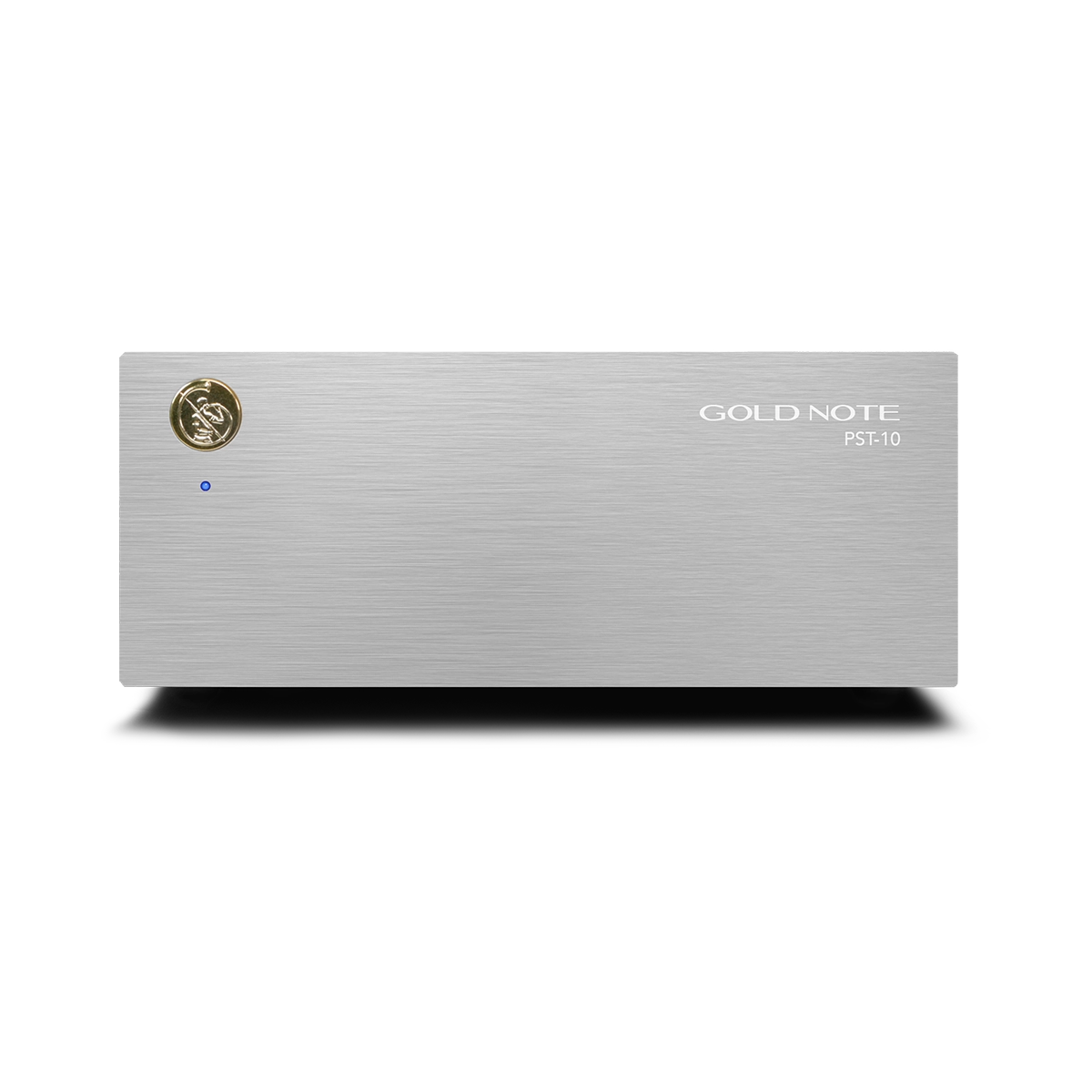

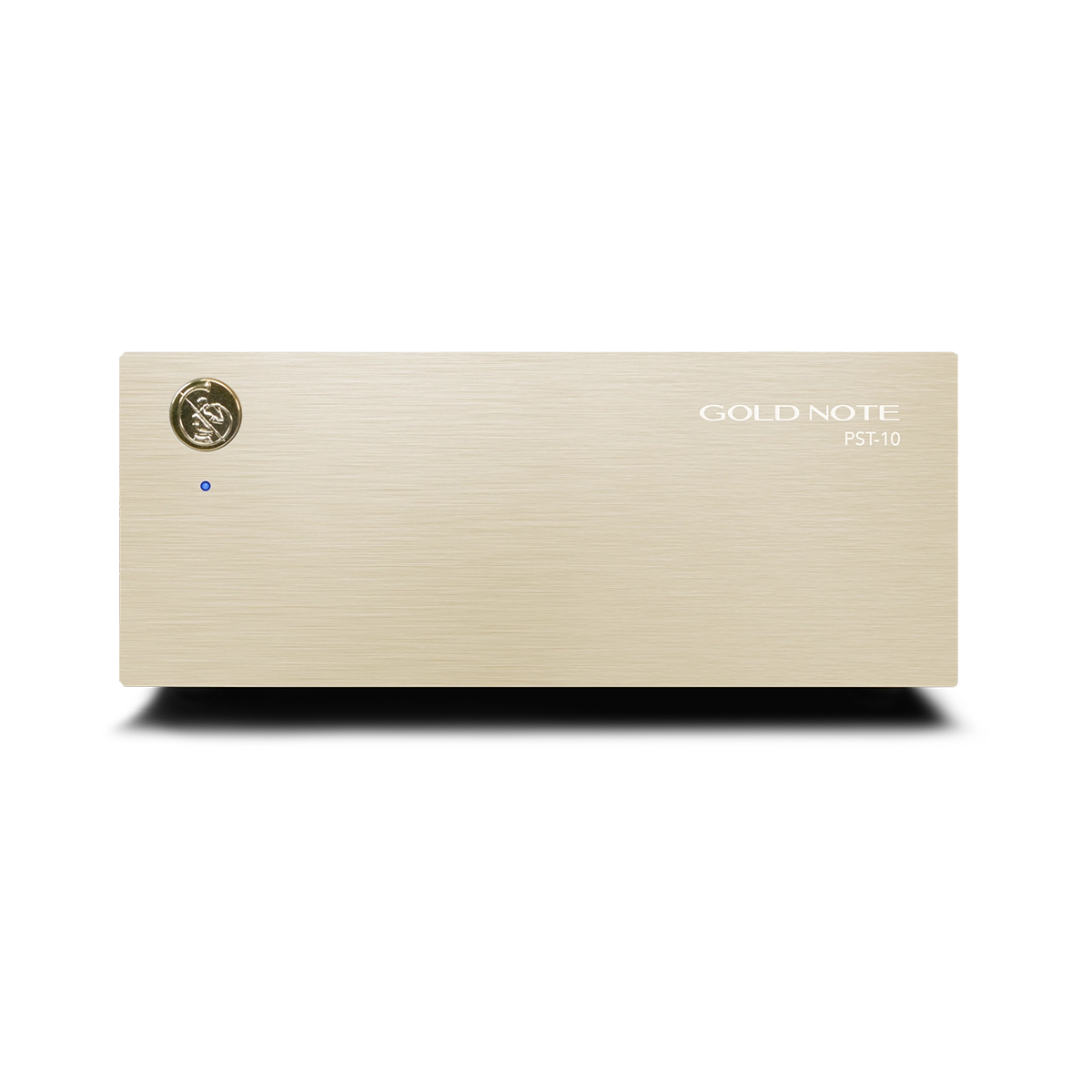

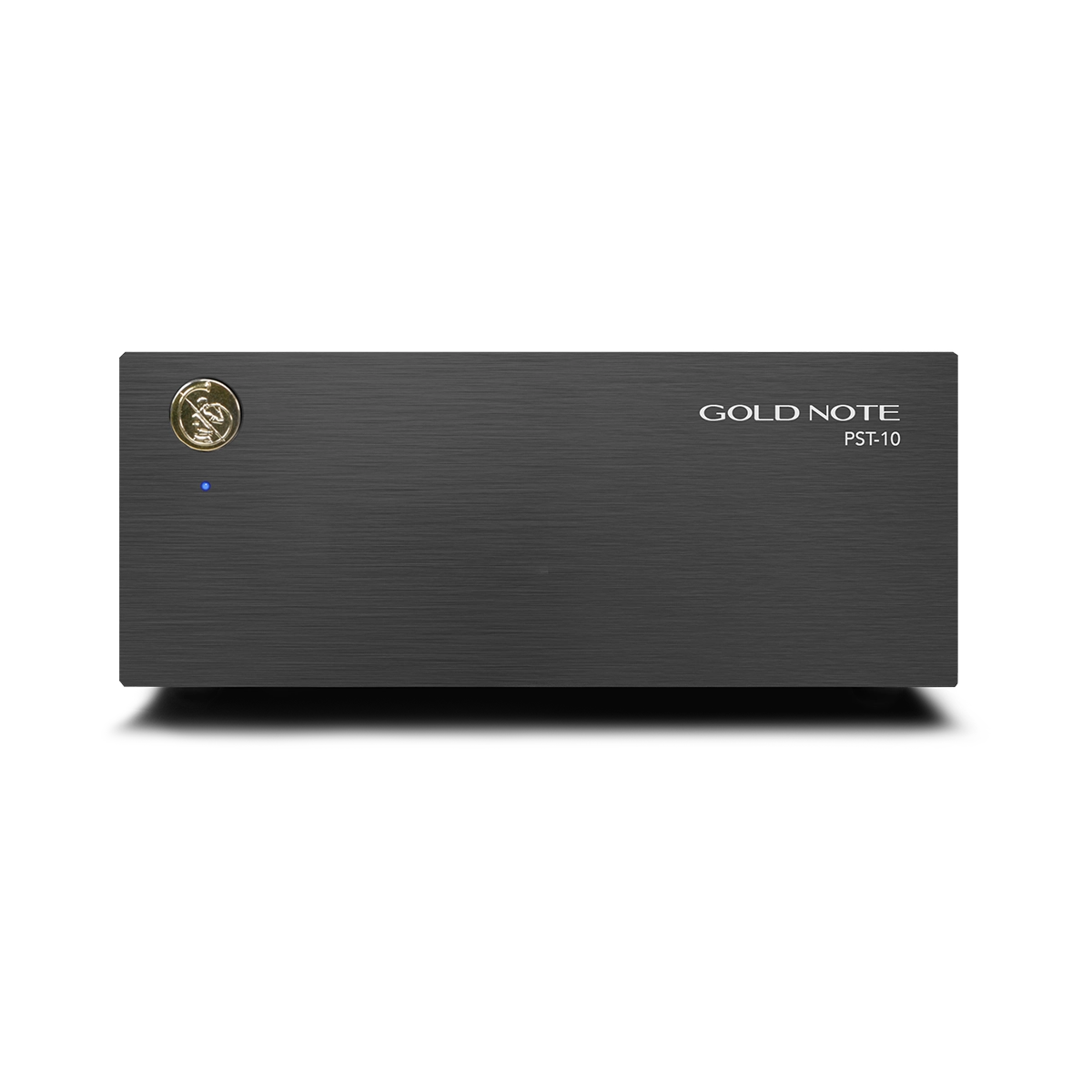

Brushed Aluminium | Black, Silver or Gold

MAIN FEATURES

TECHNICAL FEATURES 4 audio grade transformers
4 ultra low noise voltage regulators
MAXIMUM VARIATION OF OUTPUT VOLTAGE 0,05 %
LINE NOISE REJECTION >80dB
COMMON MODE NOISE REJECTION >80dB
FULL POWER RESPONSE TIME <2,5µsec

CONNECTING CABLE

CONNECTING CABLE Silver custom cable powering the turntable

COMPATIBLE TURNTABLES

COMPATIBLE TURNTABLES UPGRADE FOR
Mediterraneo
Giglio
Pianosa
Valore 425 Plus
Valore 425 Lite

INCLUDED WITH

INCLUDED WITH Bellagio Conquest
Bellagio Reference

POWER

POWER SUPPLY 100-120V / 220-240V with auto sense, 50/60Hz
POWER CONSUMPTION 25W
DYNAMIC POWER >50W
STAND BY POWER <1W
FUSE 0,5A T

DIMENSIONS AND WEIGHT

DIMENSIONS 7.87" W | 3.15" H | 10.24" D
WEIGHT Kg. 3 – net (6.61 lbs) – Kg. 4 – boxed (8.82 lbs)
