PSU-10 Evo

Created with high-quality audio components, the PSU-10 Evo is designed to enhance the performance of the DS-10 and DS-10 PLUS.

price range:

$1,299.00

Clear

recommended item(s):

Share this product

Share on facebook
Share on twitter
Share on pinterest
Share on email

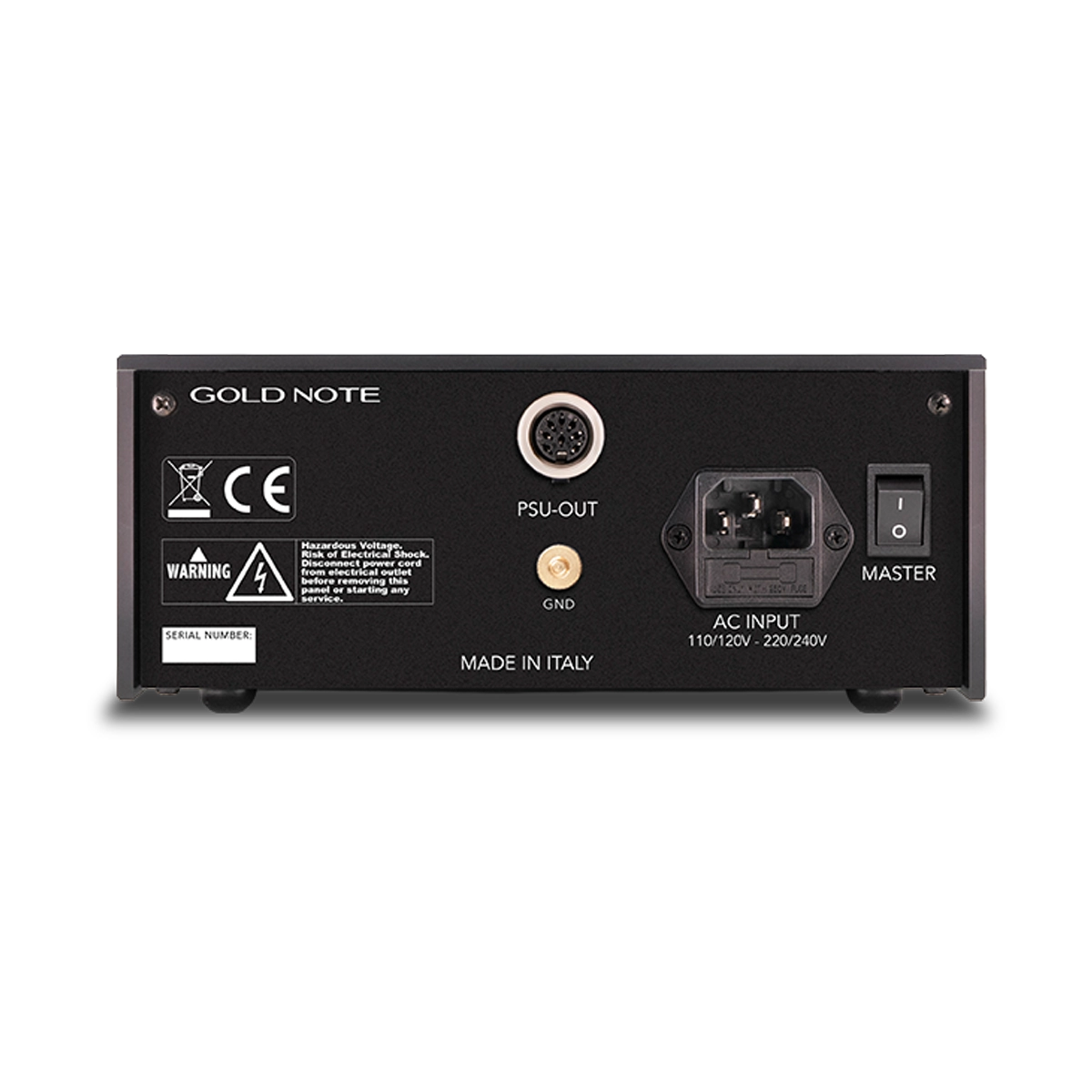

PSU-10 EVO is a new high-current power supply and has been engineered with the best quality audio grade components to enhance the performance of the DS-10 (CLASSIC and PLUS) and all the EVO electronics of the Series 10 to come. The PSU-10 EVO and the DS-10 are connected by an 8 poles DIN connector made in Austria/Germany by Hirschmann.

DIFFERENCE BETWEEN CLASSIC AND EVO
The suffix “EVO” stands for Evolution: in fact, the PSU-10 EVO now offers greater energy, a bigger power supply and one more cascode transformer filtering the power. Just as the acclaimed PSU-10 did for the well appreciated PH-10, the PSU-10 EVO will bring the DS-10 to noticeable upper-class performance.

GENERAL DESIGN IDEA OF THE PSU-10
The idea behind the PSU-10 both EVO and Classic is merging the qualities of an inductive power supply, Dual choke and multi cascode transformers design that instead of simply “enlarging” or making the external power supply Dual-mono it virtually creates the ideal filter and best energy to clean the AC power and stimulate the connected unit to expressing its best.

Technical Specifications

PSU-10 EVO Four rail audio grade power supply
Two ultra-low-noise voltage regulators
+12V, +5V for digital
+/- 15V for analog with inductive noise remover
MAXIMUM VARIATION OF OUTPUT VOLTAGE 0,05 %
LINE NOISE REJECTION >80dB
COMMON MODE NOISE REJECTION >80dB
FULL POWER RESPONSE TIME <2,5µsec
POWER SUPPLY 100V – 120V / 220V – 240V with automatic selection
Nominal Power: 70W
Dynamic Power: >100W
Standby Power: <1W
DIMENSIONS 200mm W 80mm H 260mm D
WEIGHT 4Kg net
5Kg boxed

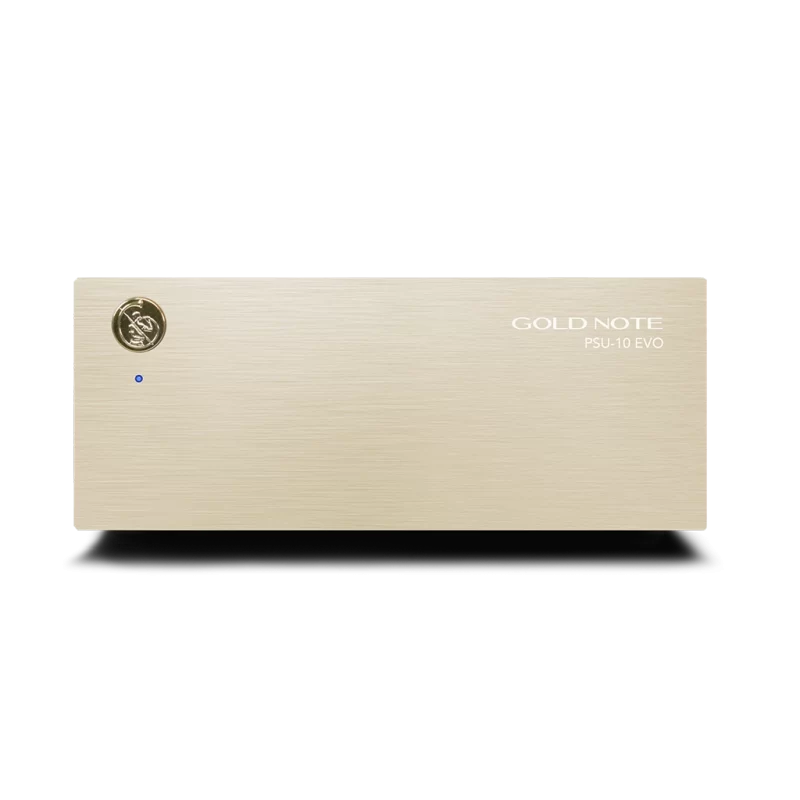

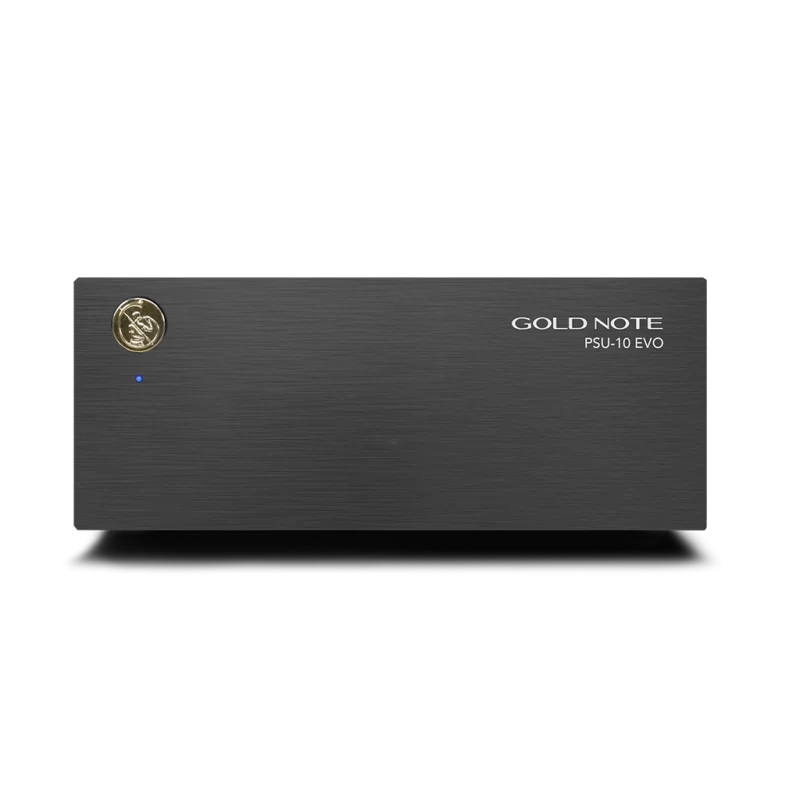

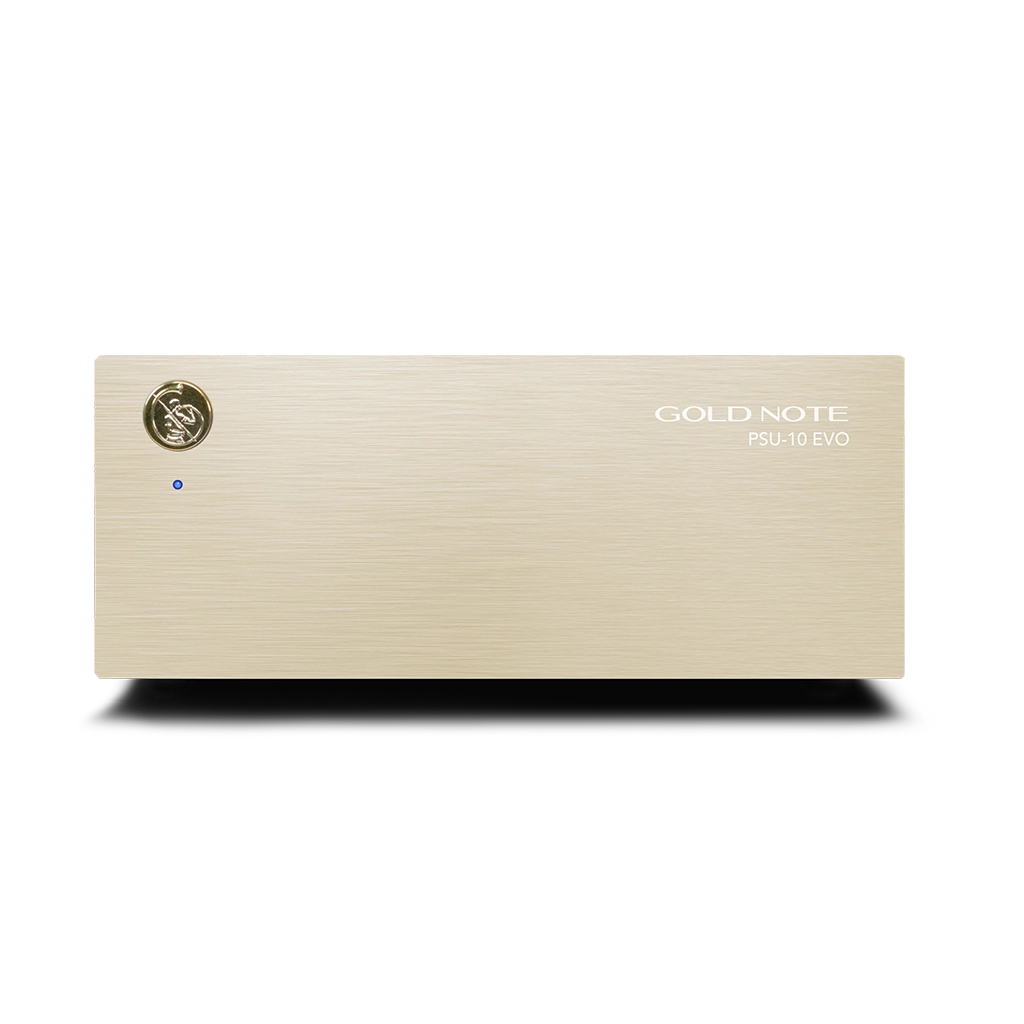

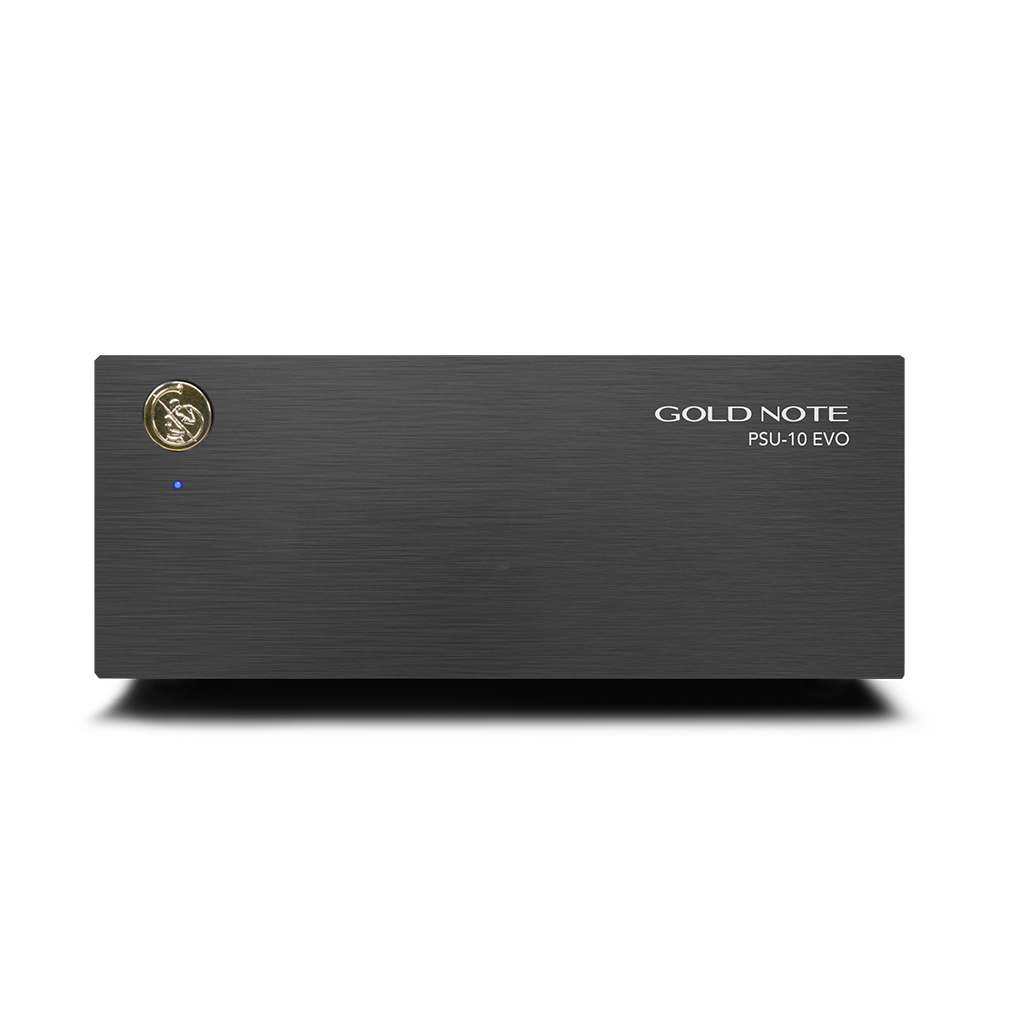

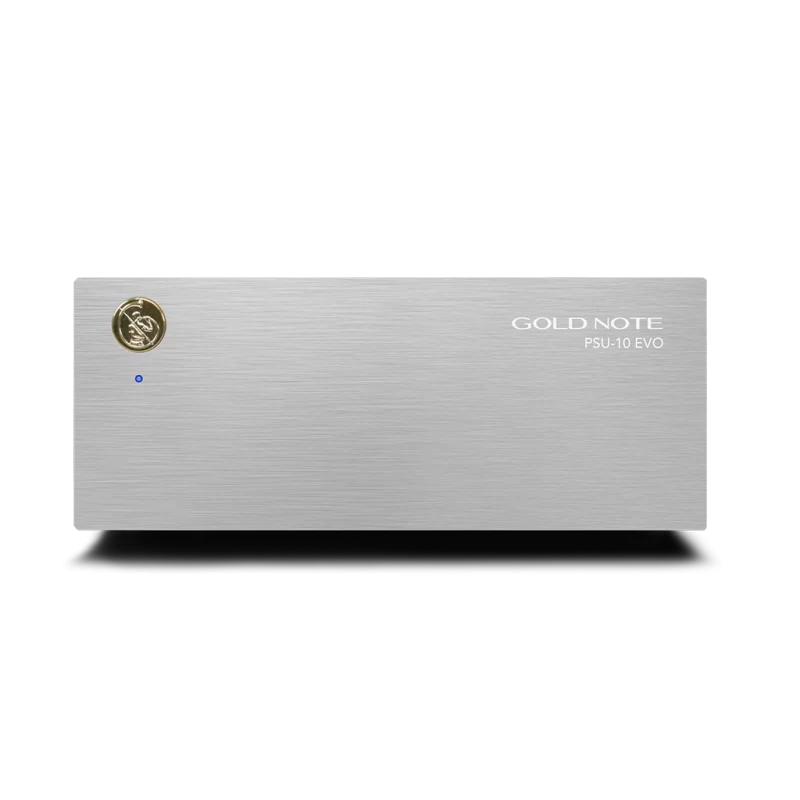

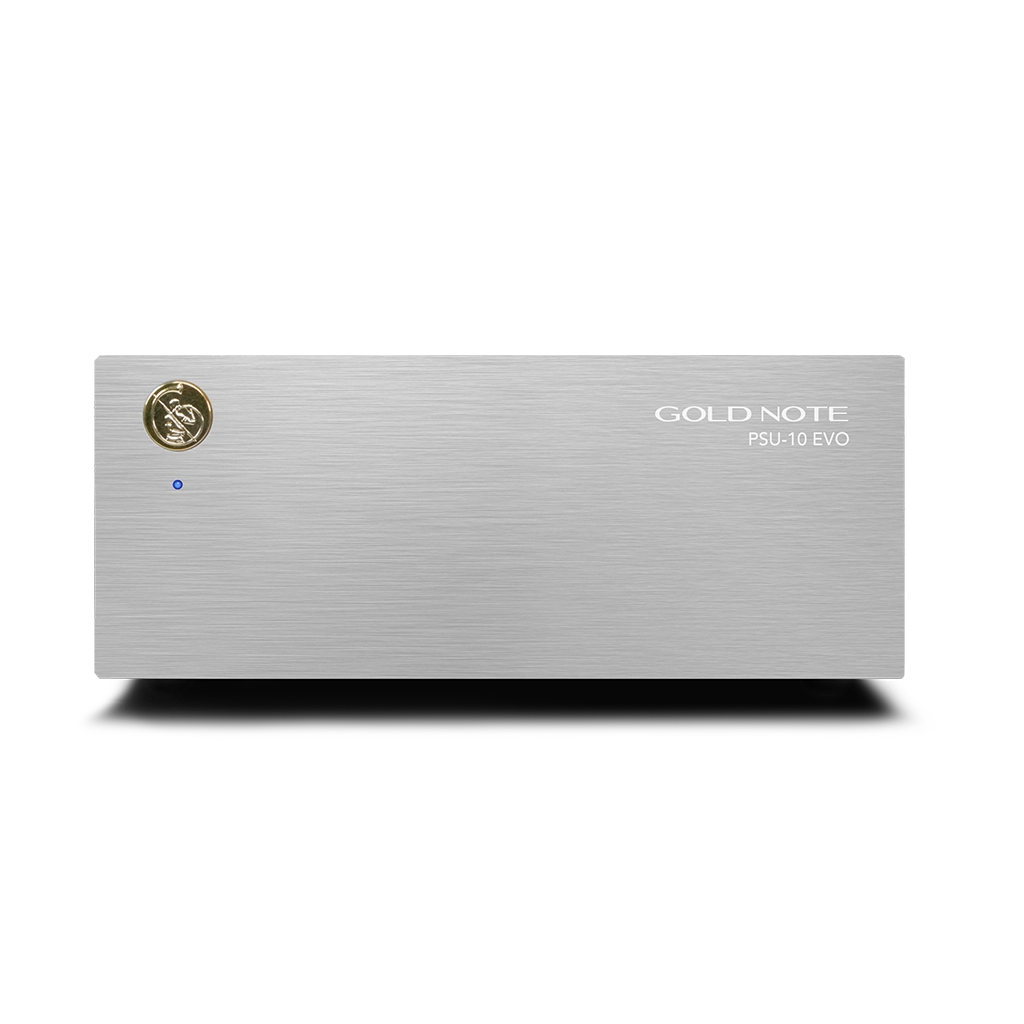

FINISHES Brushed Aluminium in Black, Silver or Gold
