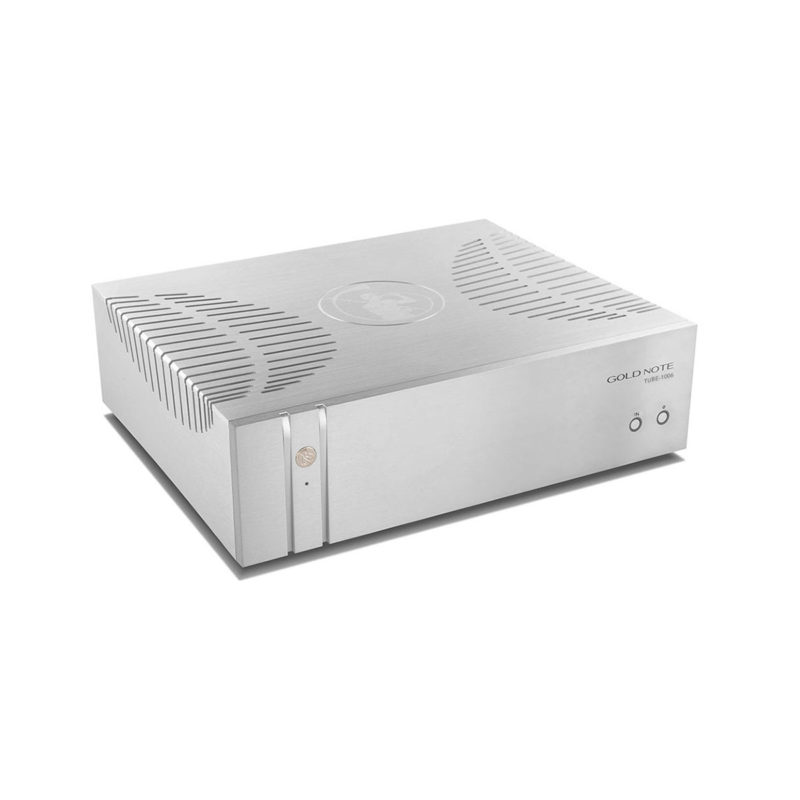

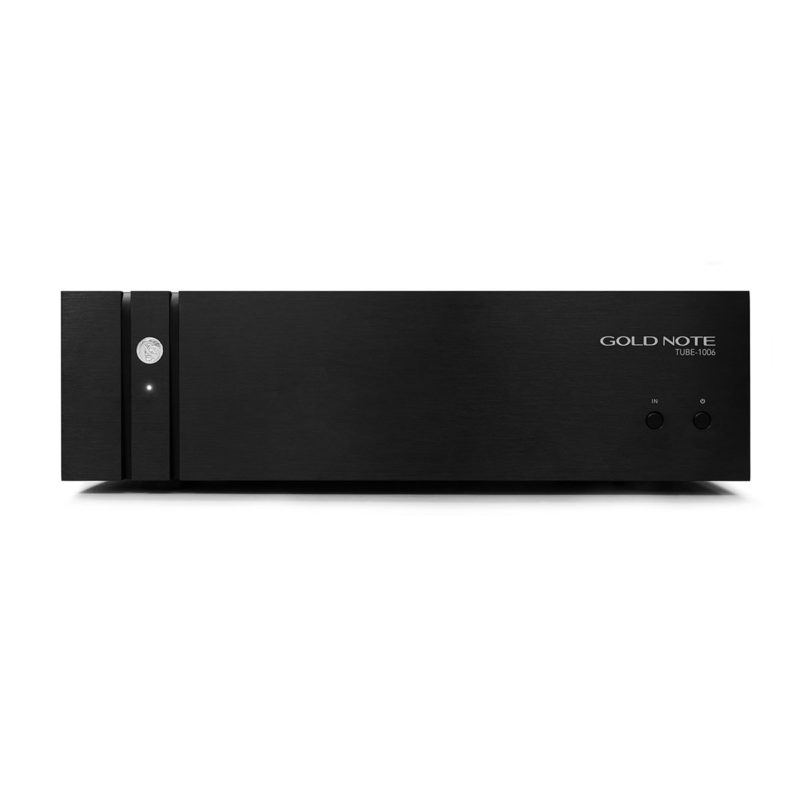

Tube-1006

Class A Tube Output Unit – featuring multiple inductive power supply stages with 12 or 6 valve output stages.

price range:

$3,799.00

Clear

recommended:

  • Tube-1012 $6,499.00

Share this product

Share on facebook
Share on twitter
Share on pinterest
Share on email

TUBE-1012 & TUBE-1006 UPDATED WITH LINE INPUTS
TUBE-1012 and TUBE-1006 are now compatible with sources and preamplifiers from other manufacturers thanks to the new Line Inputs. To use your TUBE with a unit of a different brand, simply press the “IN” button on the front panel to select the Line Input which features XLR and RCA connectors.

TUBE-1012  and  TUBE-1006 are the best way to improve even further the Gold Note sources reaching a new level of performance through the Class A 12 or 6 tubes output stages.
 Gold Note products are all solid-state designs, capable of great quality, control and definition providing outstanding realism in recreating the musical event. The idea behind designing TUBE-1012 & TUBE-1006 was to offer the quality of the sound of the tubes to every product to achieve the best of the two technologies, Solid State and Tube in perfect synergy.

Our proprietary Totem-Pole Output Stage design, with six independent stages per single tube, provides ultra-wide bandwidth response and the lowest distortion to the audio signal.

TUBE-1012 & TUBE-1006 are easy to connect and control, they also feature a dedicated MUTE button for maximum convenience.

TUBE-1012 is a 12 tubes unit, eight of which are dedicated to the audio signal path and for to the drivers powered inductively within the use of 6 transformers in a virtual battery design. In addition, TUBE-1012 features two extra power transformers for the service stage completely outside of the audio signal path.

TUBE-1006 is a 6 tubes unit, four of which are dedicated to the audio signal path and two to the drivers powered within two transformers in Dual Mono. TUBE-1006 features an extra power transformer for the service stage completely outside of the audio signal path.

TUBE-1012 & TUBE-1006 can match: CD1000, DS-1000, P-1000 & PH-1000.

PURE CLASS-A TUBE STAGE
The TUBE-1006 is able to enhance Gold Note sources to reach new high level of sonic performances through the Class A 6 tubes output stage

LOW DISTORTION DESIGN
Our proprietary Totem-Pole Output Stage design, with six independent stages per single tube, enhances ultra-wide bandwidth response preserving very low distortion

SEAMLESS INTEGRATION
TUBE-1006 it’s easy to connect and easy to control also featuring a dedicated MUTE button

FINISHES

CASE
Brushed Aluminium | Black, Silver or Gold

INSERTS
Aluminum | Black, Silver or Gold

Technical Specifications

TUBE-1006/1012 Totem-Pole Output Stage design
MAX INPUT 8Vrms linear
MAX OUTPUT 20Vrms @ XLR & 10Vrms @ RCA
OUTPUT IMPEDANCE <600Ω
INPUT SENSITIVITY 4Vrms
TUBES TUBE-1012: 6n1p x 12
TUBE-1006: 6n1p x 6
TRANSFORMERS No coupling transformers on the IN/OUT
GAIN +3,5 dB
POWER ABSORPTION TUBE-1012: 80W
TUBE-1006: 50W
POWER SUPPLY 100-120V / 220-240V, 50/60Hz
TUBE-1006: Gold Note custom made transformer
TUBE-1012: Super Linear Vacuum Tube Regulator with 4 Inductive Choke filters
DIMENSIONS 430mm W 135mm H 370mm D
WEIGHT TUBE-1012: 35lbs net – 46lbs boxed
TUBE-1006: 29lbs net – 42lbs boxed
FINISHES Brushed Aluminum Black, Silver or Gold

Product Reviews

CD-1000, PSU-1000, TUBE-1006 | 6MOONS
Srajan Ebaen
Mar 13, 2019

„The particular lesson to take away is that God Note’s all-out player/DAC is one beast of a performer. At €11’240 all in, it’s big time stuff both physically, fysically and the other way around. (…) This multi-tier upgrade path can be applied across the range except for their power amplifier. That really is a unique selling proposition. It’s also a rather forward-thinking strategy. Way to go, Golden Squad of Florence!“ – Srajan Ebaen
